schaerer axis 400-800, 5 model variants in the basic position and 4 model variants in the reverse position are available.
The models schaerer axis 400-800 provide for many and diverse applications in all surgical disciplines - be this in clinical operation or in outpatient surgery.
The mobile operating tables schaerer axis 400-800 are distinguished by a high quality and economy. They are the basis for innovative and precise application concepts for the major surgery.

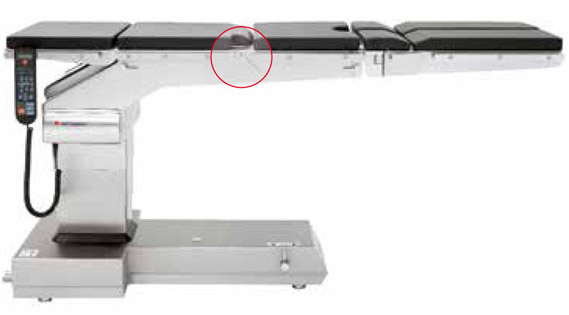

The basic table with one electro-hydraulically driven table top movement for the seat plate. Axis in front of the column. One-part, non-removable seat plate bars. Manually adjustable head and leg plates supported by gas pressure springs. X-ray transparency 1450 mm.

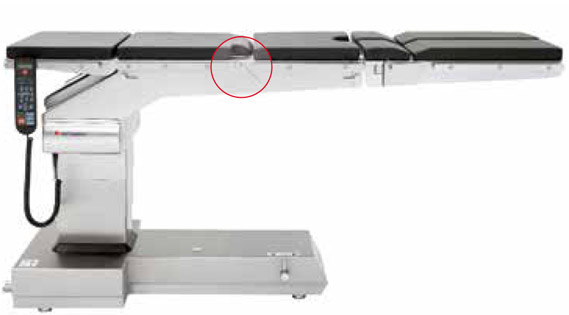

The universal table with one electro-hydraulically driven table top movement for the seat plate. Removable, two-part seat plate bars for fitting orthopaedic accessories in the basic or reverse position (beach chair). Manually adjustable head and leg plates supported by gas pressure springs. Universal for all accessories, including extension devices and the schaerer ® MIS-Extension. X-ray transparency 1450 mm.
The comfort table with two electro-hydraulically driven table top movements for seat plate and leg plates. Manually adjust - able head plate with gas pressure spring. Ideal for gynaecol - ogy, urology and neurosurgery. X-ray transparency 1450 mm.

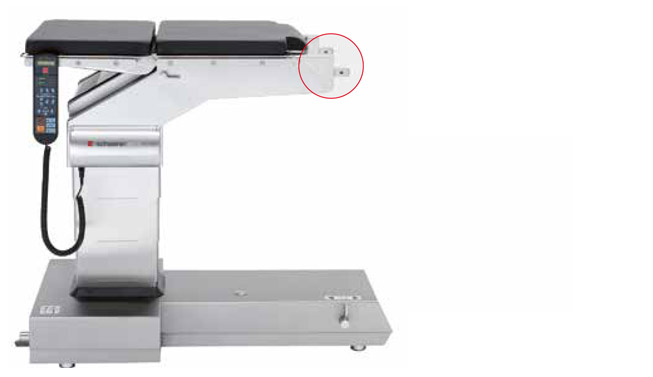

The ortho-trauma table with one electro-hydraulically driven table top movement. Specially for orthopaedic and trauma accessories (Extension devices, schaerer ® MIS-Extension). schaerer ® axis 500 basic unit (without seat and leg plates).
The premium table with a 1990 mm table top from the column, for maximum accessibility in basic and reverse position. 2 electro-hydraulically driven table top axes for seat plate and leg plate. Reverse position: automatically adjustable back or head plate. Extended movement range of the relevant plate 85 / 105. Adjustable accessories such as leg holder and shoulder arthroscopy plate. Best for neurosurgery and ENT operations through the unobstructed access to the operating field.
