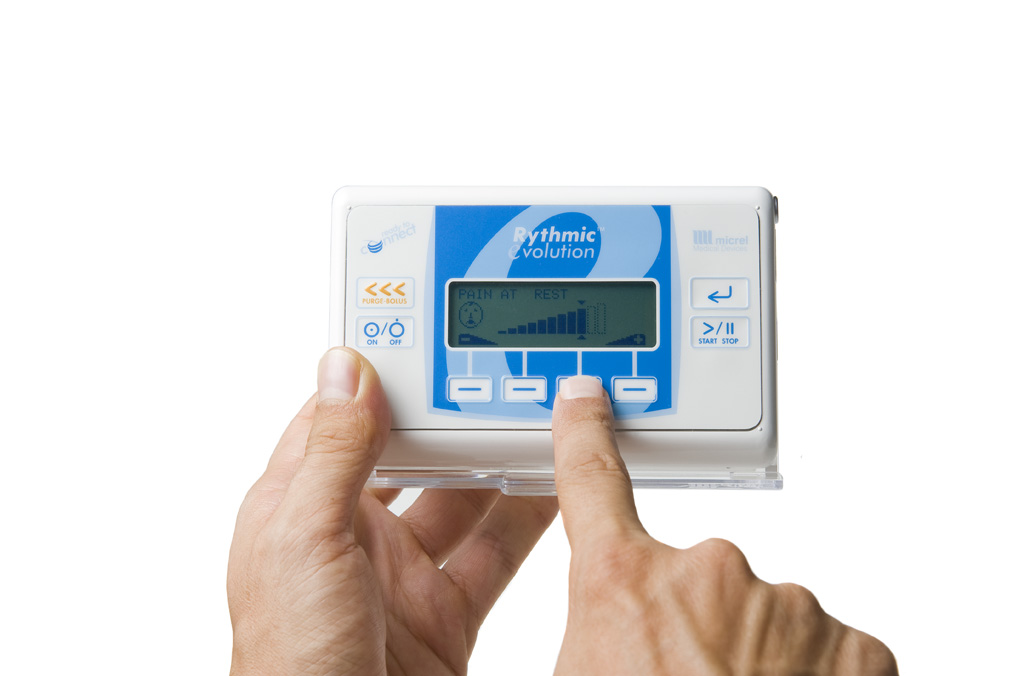

Rythmic™ Evolution is an ambulatory pump for Acute and Chronic Pain management, as well as other continuous infusion therapies such as Chemotherapy, Cystic Fibrosis, Primary Pulmonary Hypertension, IVIG.

Key features of the Rythmic™ Evolution portable pump:

The new Rythmic™ Evolution brings Pain Management to a new era by interacting with the patient and allowing the patient to record his pain level during the therapy through an integrated Visual Analogue Scale (VAS)
A protocol library is included in the pump. Caregivers can titrate the selected infusion protocol, staying within pre-programmed safety limits
Custom menu with or without Bolus / Dose Limit / Loading dose to fit therapy protocols and avoid set up errors
Easy review of patient history thanks to easy-to-read history menu on the pump and display of graphs
Simplified set up menu with a 3-step start procedure: Enter Rate, Volume to Infuse and Start infusion.
Allows for "Preventive Maintenance" notices
Ability to print history and events on a portable printer or download on a PC
Connectivity to our proprietary mobile GPRS device IP-Connect™ that allows for the best infusion monitoring service available today through our web based MicrelCare Service system

Rythmic™ Evolution is reducing unnecessary alarm activity

The pump has been designed to reducemost of unnecessary potential alarms whilst preserving full safety:

No air alarm thanks to the air-in-line eliminator incorporated in all sets
Automatic restart after occlusion release
Long battery autonomy (7 days at 2ml/h) to decrease the frequency of battery alarms and related changes

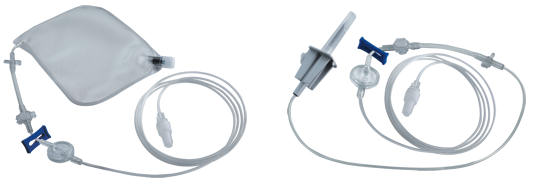

Rythmic™ Evolution offers "All in One" innovative, high safety, infusion sets

All sets include all pre-assembled components thus avoiding additional unsafe connections
Available in 100ml or 160ml version for integration into the pump or with Spike for external bags
Soft drug bag that is convenient to fill and prime manually or via the pump
Built-in anti free flow / back check valve, air eliminator, and extension line on all sets

Rythmic™ Evolution offers real mobility to patients

Small, ergonomic and compact for true and comfortable ambulatory therapies
Drug bags for volumes up to 160ml placed in dedicated space inside the pump
Lightweight: 290g with dry cell battery
Outstanding battery autonomy

The pump is also supported by a wide range of Accessories.

Please click on the Specifications Tab on the right to see the specifications of the Rythmic™ Evolution pump.

Delivery modes	Continuous, Bolus only, Continuous + Bolus, Programmed Automatic Bolus (PAB)
Accuracy	+/- 5 %
Flow rate	0.1 to 100 ml/h
Programming units Concentration	ml/mg/ug 0.1 to 99.9 mg/ml/0.1 to 999.9 ug/ml
Volume to infuse	1 to 9999 ml
Bolus dose	0 or from 0.1 to 60ml with 0.1ml increment
Bolus flow rate	100 ml/h, adjustable from 50 to 100 ml/h with 10 ml/h increment
Lockout interval	0 to 999 minutes
Special functions	Protocol libraries (60 protocol per library) Dose limit / x hours and Bolus limit / x hours Loading dose Clinician bolus override Mandatory priming (enabled, warning only, disabled).
Therapy monitoring	Recording of patient pain scores with visual analogue scale (VAS) VAS available in the pump history, printable and computer downloadable "Ready to Connect" to the MicrelCare System for therapy monitoring through the web.
KVO	0.1 to 2.0 ml/h
Automatic restart of infusion after occlusion release	Yes
Safety features	Air in line eliminator Free flow protection according to IEC 601-2-24 Programming within protocol limits Dedicated therapy front face for regional analgesia (PCEA/PCRA yellow color code)
Alarms & warnings	Occlusion (low 0.8 bar, middle 1.2 bar, high 1.6 bar), near end and end of infusion Low and depleted battery Dose limit, bolus limit Open mechanism, preventive maintenance warning
Access code levels	3
Programming	Protocol libraries programmed with "Rythmic™ Evolution Therapy Manager" computer software Direct programming on the pump possible with special access code
History, infusion graph / printout and PC download	Yes, including 6500 time stamped events event log "Plug and play" print facility
Battery life	7 days at 2 ml/h
Power supply	90 to 240 V, 50-60 Hz (with optional adaptor KS5.01.615.x)
